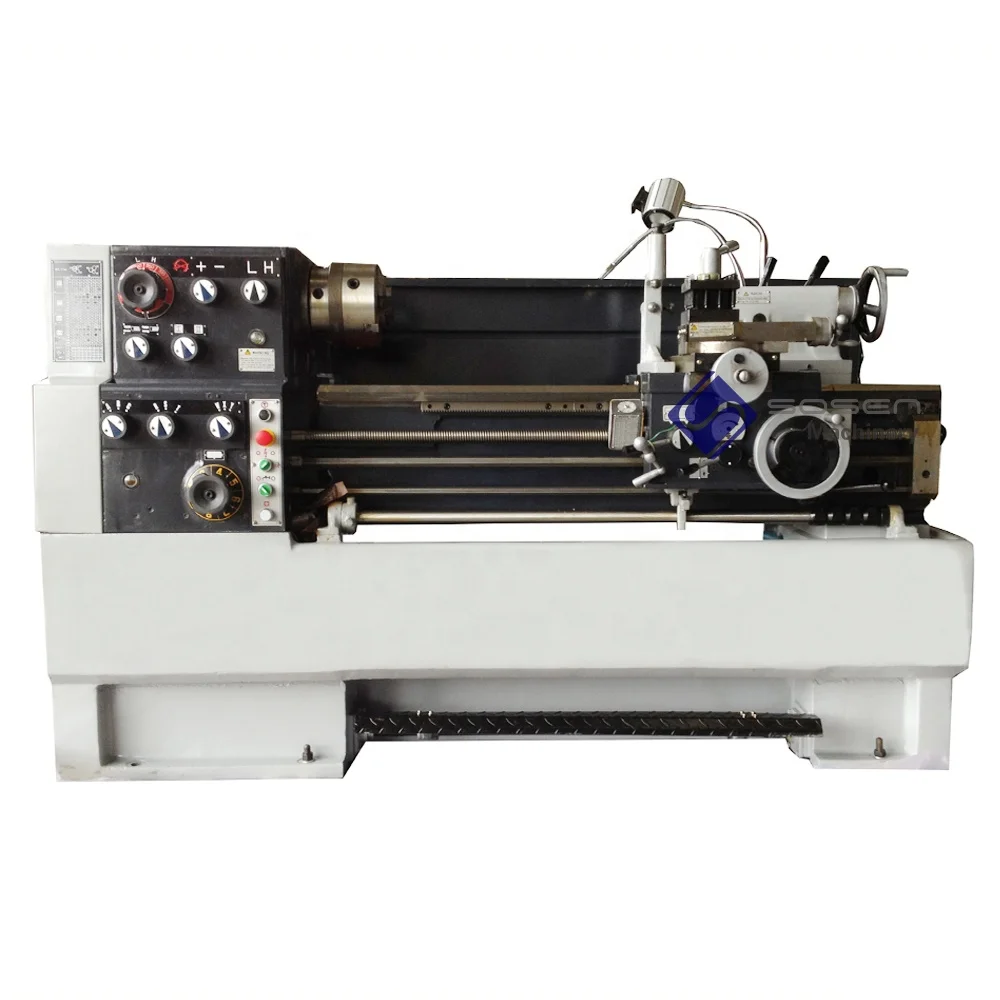

1840 horizontal metal lathe turning machine

FOB Reference Price:Get Latest Price
$6,500.00 - $9,900.00 / Sets | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
460mm
Spindle bore:
52mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Range of Spindle Speed(r.p.m):
32-2000rpm
Max. Swing Diameter (mm):
460mm
Width of bed (mm):
310mm
Max. Length of Workpiece (mm):
1000
Max. Turned Length (mm):
1000
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Manual
Year:
new
Place of Origin:
Shandong, China
Brand Name:
SOSEN
Model Number:
1840GD
Voltage:
220V/380V/415V 3PH
Dimension(L*W*H):
2340x1150x1620mm
Certification:
CE, ISO9001
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Power (kW):
4
Weight (KG):
1700
Warranty:
1 Year
Key Selling Points:
High-accuracy
Machine Type:
1840 horizontal metal lathe turning machine
Spindle bore:
52mm
Distance between centers:
1000mm
Width of bed:
310mm
Max.section of tool:
20*20mm
Taper of spindle bore:
MT6
Color:
Customrized
Function:
Metal Processing turning lathe
Origin:
China manufacturer
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard full closed plywood case suitable for shipment by sea.
Packing size: 2340x1150x1620mm
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated

1840 horizontal metal lathe turning machine

Product Description
SPECIFICATIONSMODELS
1630GD/1640GD/1660GD/1680GD1840GD/1860GD/1880GD1840D/B   1860D/B   1880D/B
CAPACITY
Swing over bed410mm(16")458mm(18")
Swing over cross slide240mm(9-7/16")288mm(11-5/6")
Swing in gap595mm(23-7/16")640mm(25-3/16")
Length in gap155mm(6-1/8")
Max. length of workpieces750/1000/1500/2000mm(30"/40"/60"/80")
Wide of guideway310mm
HEADSTOCK
Spindle noseISO702/II No.6 CamlockISO702/II No.8 Camlock
Spindle boreφ52mmφ77mm
Taper of spindle boreMT61:20
Range of spindle speeds               GD/32-2000rpm,12steps                             D/B24-1600rpm,12steps
Max. output of spindle torque1400N.m
FEEDS AND THREADS
Max. travel of compound rest    120mm
Max. travel of cross slide230mm
Leadscrew pitch6mm or 4TPI
Section of tool  20x20mm
Longitudinal feeds range0.032-0.896mm/rev     0.0013-0.0368in/rev
Cross feeds range0.016-0.448mm/rev     0.0006-0.0184in/rev
Metric threads range53kinds,0.4-14mm
Inch threads range40kinds,2-56TPI
Diametrical threads range32kinds,4-56D.P
Module threads range44kinds,0.4-7M.P
TAILSTOCK
Dia. of tailkstock sleeveφ55mm
Taper of tailstock sleeve  MT4
Travel of tailstock sleeve120mm
Cross adjustment13mm
MOTOR
Power of main motor4KW(5.4HP),3PH,
Power coolant pump90W(1/8HP),3PH
Available voltage / cycle220V,380V,420V/50Hz,60Hz
DIMENSION AND WEIGHT
Overall dimension (LxWxH)  195/215/265/315x100x127cm215/265/315x100x135cm
Packing size (LxWxH)210/234/284/334x115x162cm  234/284/334x115x178cm
Net weight1600/1700/1950/2200kg1800/2050/2300kg
Gross weight1850/1950/2200/2450kg2050/2300/2550kg



Features:

1. 1840 horizontal metal lathe turning machine can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

2. Threading Inch, Metric, Module and D.P.; Perform drilling, boring and groove broaching;

3. Machine all kinds of flat stocks and those in irregular shapes;

4. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

5. Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;

6. There are hand brake and foot brake for users to choose for 1660 China manufacturer 410mm metal lathe machine.

7. These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).





Standard accessories :

3-Jaw chuck and adapter, 4-Jaw chuck and adapter, 4-way tool post, steady rest, follower rest,

face plate, drive plate, foot brake , full length splash guard, longitudinal machanical stop,

halogen light,  chuck cover, tool pos cover, coolant system,  dead center, oil gun,

change gears,  operation manual, packing with wooden case for shipment, light gray and dark gray color



Optional  accessories:

SINO DRO 2-axis

Quick change tool post

Live center

Turning tools

Taper turning attachment

Bigger spindle bore diameter





Packing & Shipment



Company Information







FAQ

Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.

Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.

Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.

Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.

Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.

Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
